T70TZ100

Ana Sayfa LEHİMLEME SİSTEMLERİ Havya Modelleri TMT-5000S Havya Uçları T70TZ100

Model
T70TZ100
Marka
Thermaltronics

T70TZ100 Datasheet

Technical Specifications

T70TZ100

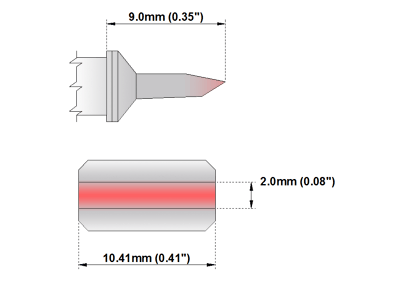

Tweezers Cartridge Pair - Blade Tip 10.41mm (0.41")
Tip Style:	Tweezers
Tip Width:	10.41mm (0.41")
Tip Length:	9.00mm (0.35")

700 Type Cartridge¹:	350°C - 398°C
RoHS Compliant² / Lead Free:	YES
For Use With:	TMT-5000S-1, TMT-5000S-2

Ürün 1-2 İş Günü içerisinde teslim edilebilir.

Stokta Var

Birim Fiyat 3544,23 TL + KDV

Havale İndirimli 3441,00 TL + KDV

Genel Özellik
Teknik Özellikler
Teknik Dökümanlar
Taksit
Video

T70TZ100 Datasheet

Technical Specifications

T70TZ100

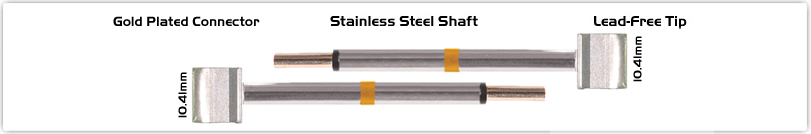

Tweezers Cartridge Pair - Blade Tip 10.41mm (0.41")
Tip Style:	Tweezers
Tip Width:	10.41mm (0.41")
Tip Length:	9.00mm (0.35")

700 Type Cartridge¹:	350°C - 398°C
RoHS Compliant² / Lead Free:	YES
For Use With:	TMT-5000S-1, TMT-5000S-2

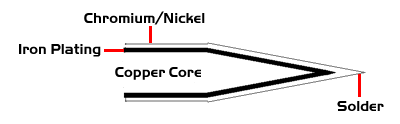

Material Composition

Patented Color Band

All components are RoHS compliant and Lead-Free.

¹ Thermaltronics tip cartridges will typically idle within a temperature range of +/-1.1°C. However, there is variation in idle temperature across tip geometries within an individual temperature series. Thermaltronics offers a wide variety of tip geometries from 0.25mm fine point tip to 5mm chisel. The length and geometry of a tip will have an influence on the tip idle temperature. To accurately measure idle temperature it will depend greatly on the measurement method, technique and equipment used. Two different methods or the use of alternative equipment will produce different test results.
